serval-admin: serval-builds: support chapter-aware project book display by marksvc · Pull Request #3847 · sillsdev/web-xforge

marksvc · 2026-05-05T22:43:19Z

Recently a change was made in the backend where Serval builds might be
reported with chapter numbers, indicating a partial book. This patch
modifies the Serval builds tab to display that chapter information.
Unfortunately, it may not be possible to actually test this behvaiour
very easily until we start to use partial book drafting. It is
possible to see the new frontend behaviour by modifying the backend to
re-write data with chapter lists.

In draft-jobs.component.ts there is a change to using a new
DraftJobsProjectBooks instead of projectBooks. This is so the new
feature doesn't need to also be implemented in the draft jobs
component.

Screenshot showing chapter numbers in table row: (note: I didn't try to make the chapter usage make sense in this example screenshot; this is just to show the information)

Screenshot showing chapter numbers in expanded details:

This change is

Copilot

Pull request overview

Updates the Serval Administration “Serval builds” UI to display chapter-aware scripture ranges (partial-book builds) by parsing chapter ranges from backend scriptureRange strings and formatting them for display.

Changes:

Extend ProjectBooks to carry booksAndChapters (book id + optional chapter list) instead of a plain books array.
Parse chapter numbers from semicolon-delimited scriptureRange segments and display them in compact range notation (e.g., GEN 10-11, 16-19; EXO).
Keep Draft Jobs insulated from the new chapter-aware model by introducing DraftJobsProjectBooks and only adapting when exporting.

Reviewed changes

Copilot reviewed 7 out of 7 changed files in this pull request and generated no comments.

Show a summary per file

File	Description
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-builds.component.ts	Adds formatting helpers to render book+chapter ranges and updates project-books formatting to use the new model.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-builds.component.spec.ts	Updates existing expectations and adds coverage for compact chapter-range formatting.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-builds.component.html	Switches UI display/tooltip rendering from `books` to formatted `booksAndChapters`.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-builds-statistics.ts	Updates book counting logic to use `booksAndChapters`.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-build-report.ts	Introduces `BookAndChapters`, updates `ProjectBooks`, and parses chapter ranges from `scriptureRange`.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/serval-build-report.spec.ts	Updates expectations for the new `booksAndChapters` model and adds a chapter-parsing test.
src/SIL.XForge.Scripture/ClientApp/src/app/serval-administration/draft-jobs.component.ts	Introduces `DraftJobsProjectBooks` and adapts export formatting without implementing chapter-aware display in Draft Jobs.

💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.

codecov · 2026-05-05T22:51:03Z

Codecov Report

❌ Patch coverage is 75.00000% with 12 lines in your changes missing coverage. Please review.
✅ Project coverage is 81.07%. Comparing base (dbe86e2) to head (38fa016).
✅ All tests successful. No failed tests found.

Files with missing lines	Patch %	Lines
.../app/serval-administration/draft-jobs.component.ts	40.00%	6 Missing ⚠️
...p/serval-administration/serval-builds.component.ts	84.21%	1 Missing and 2 partials ⚠️
.../serval-administration/serval-builds-statistics.ts	80.00%	2 Missing ⚠️
...c/app/serval-administration/serval-build-report.ts	88.88%	0 Missing and 1 partial ⚠️

Additional details and impacted files

@@            Coverage Diff             @@
##           master    #3847      +/-   ##
==========================================
- Coverage   81.07%   81.07%   -0.01%
==========================================
  Files         630      630
  Lines       40613    40651      +38
  Branches     6580     6592      +12
==========================================
+ Hits        32929    32956      +27
- Misses       6654     6662       +8
- Partials     1030     1033       +3

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

pmachapman

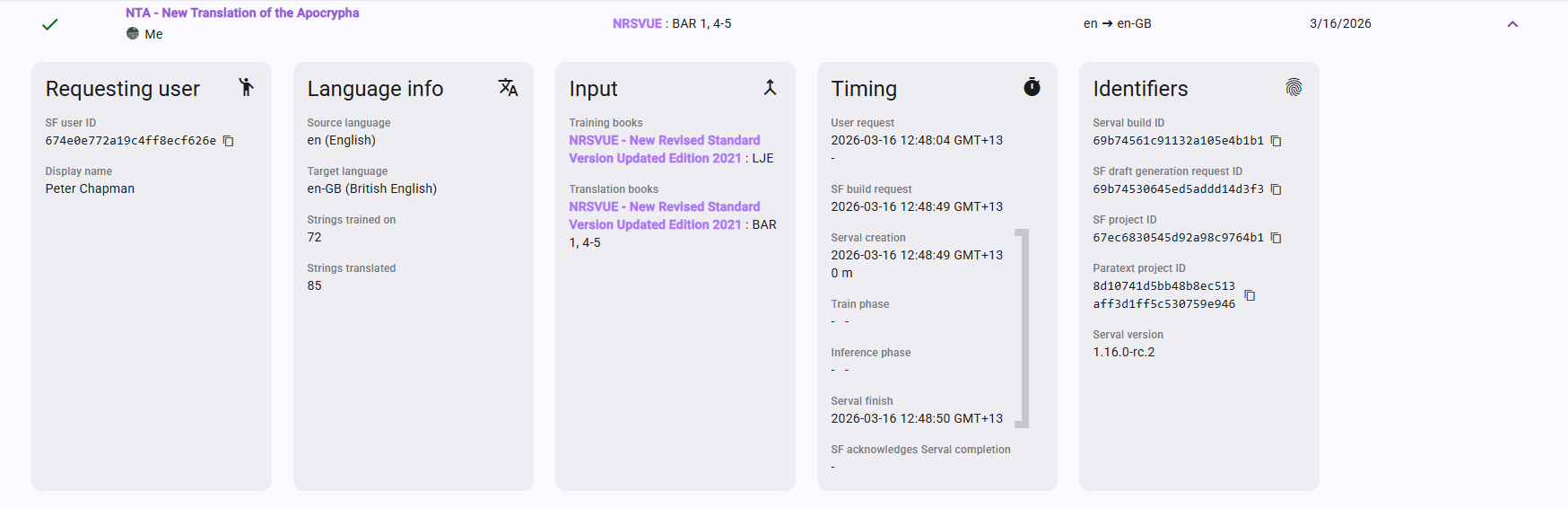

This worked well for a test build I did a couple of months ago for partial books drafting:

@pmachapman reviewed 7 files and all commit messages, and made 1 comment.
Reviewable status: complete! all files reviewed, all discussions resolved (waiting on marksvc).

marksvc

Oh, that's great; thanks for showing!

@marksvc made 1 comment.
Reviewable status: 3 of 7 files reviewed, all discussions resolved (waiting on pmachapman).

github-actions · 2026-05-12T17:19:53Z

✅ No screenshot differences — all stories are identical.

View the diff page at: https://pr-3847--sf-screenshot-diffs.netlify.app

Copilot

Pull request overview

Copilot reviewed 7 out of 7 changed files in this pull request and generated 2 comments.

+  /** Help template access static methods. */
+  protected ServalBuildsComponent = ServalBuildsComponent;
+


+      const trainingBooksProjectBooks: ProjectBooks[] = row.trainingBooks.map(bookInfo => ({
+        sfProjectId: bookInfo.sfProjectId,
+        projectDisplayName: bookInfo.projectDisplayName,
+        shortName: bookInfo.shortName,
+        booksAndChapters: bookInfo.books.map(book => ({ bookId: book }))
+      }));
+      const translationBooksProjectBooks: ProjectBooks[] = row.translationBooks.map(bookInfo => ({
+        sfProjectId: bookInfo.sfProjectId,
+        projectDisplayName: bookInfo.projectDisplayName,
+        shortName: bookInfo.shortName,
+        booksAndChapters: bookInfo.books.map(book => ({ bookId: book }))
+      }));


marksvc · 2026-05-12T17:28:26Z

Thank you @pmachapman . I discovered that this change was regressing how the unique-book-usage count was working and made some additional changes to fix it. So if you could point your eyes to it again for a bit that would be great! Thank you!

pmachapman

@pmachapman reviewed 4 files and all commit messages, and made 1 comment.
Reviewable status: all files reviewed, 2 unresolved discussions (waiting on marksvc).

Recently a change was made in the backend where Serval builds might be reported with chapter numbers, indicating a partial book. This patch modifies the Serval builds tab to display that chapter information. Unfortunately, it may not be possible to actually test this behvaiour very easily until we start to use partial book drafting. It is possible to see the new frontend behaviour by modifying the backend to re-write data with chapter lists. In draft-jobs.component.ts there is a change to using a new `DraftJobsProjectBooks` instead of `projectBooks`. This is so the new feature doesn't need to also be implemented in the draft jobs component.

marksvc requested a review from Copilot May 5, 2026 22:43

marksvc added e2e Run e2e tests for this pull request will require testing PR should not be merged until testers confirm testing is complete labels May 5, 2026

marksvc marked this pull request as draft May 5, 2026 22:43

Copilot started reviewing on behalf of marksvc May 5, 2026 22:44 View session

marksvc temporarily deployed to e2e_tests May 5, 2026 22:46 — with GitHub Actions Inactive

marksvc had a problem deploying to e2e_tests May 5, 2026 22:46 — with GitHub Actions Failure

marksvc added testing not required and removed will require testing PR should not be merged until testers confirm testing is complete labels May 5, 2026

Copilot AI reviewed May 5, 2026

View reviewed changes

marksvc marked this pull request as ready for review May 5, 2026 22:49

marksvc had a problem deploying to e2e_tests May 5, 2026 22:50 — with GitHub Actions Failure

marksvc had a problem deploying to e2e_tests May 6, 2026 21:30 — with GitHub Actions Failure

marksvc temporarily deployed to e2e_tests May 6, 2026 22:37 — with GitHub Actions Inactive

marksvc force-pushed the task/sb-chapters branch from 687ff86 to 7ea0138 Compare May 8, 2026 21:00

marksvc temporarily deployed to e2e_tests May 8, 2026 21:03 — with GitHub Actions Inactive

marksvc temporarily deployed to screenshot_diff May 8, 2026 21:06 — with GitHub Actions Inactive

pmachapman self-requested a review May 11, 2026 22:37

pmachapman self-assigned this May 11, 2026

pmachapman approved these changes May 11, 2026

View reviewed changes

Nateowami force-pushed the task/sb-chapters branch from 7ea0138 to 0366695 Compare May 12, 2026 00:59

Nateowami enabled auto-merge (squash) May 12, 2026 01:00

Nateowami force-pushed the task/sb-chapters branch from 0366695 to e591de7 Compare May 12, 2026 01:53

marksvc commented May 12, 2026

View reviewed changes

marksvc force-pushed the task/sb-chapters branch from e591de7 to 72e70ba Compare May 12, 2026 15:01

marksvc disabled auto-merge May 12, 2026 17:11

marksvc requested a review from Copilot May 12, 2026 17:15

marksvc temporarily deployed to e2e_tests May 12, 2026 17:15 — with GitHub Actions Inactive

Copilot started reviewing on behalf of marksvc May 12, 2026 17:15 View session

marksvc temporarily deployed to screenshot_diff May 12, 2026 17:18 — with GitHub Actions Inactive

Copilot AI reviewed May 12, 2026

View reviewed changes

pmachapman approved these changes May 12, 2026

View reviewed changes

marksvc added 4 commits May 13, 2026 07:48

Fix error

69236a2

Add test

4e9dc86

serval-builds: normalize unique book IDs to first three characters

38fa016

pmachapman force-pushed the task/sb-chapters branch from 1543754 to 38fa016 Compare May 12, 2026 19:48

pmachapman temporarily deployed to e2e_tests May 12, 2026 19:51 — with GitHub Actions Inactive

pmachapman temporarily deployed to screenshot_diff May 12, 2026 19:54 — with GitHub Actions Inactive
